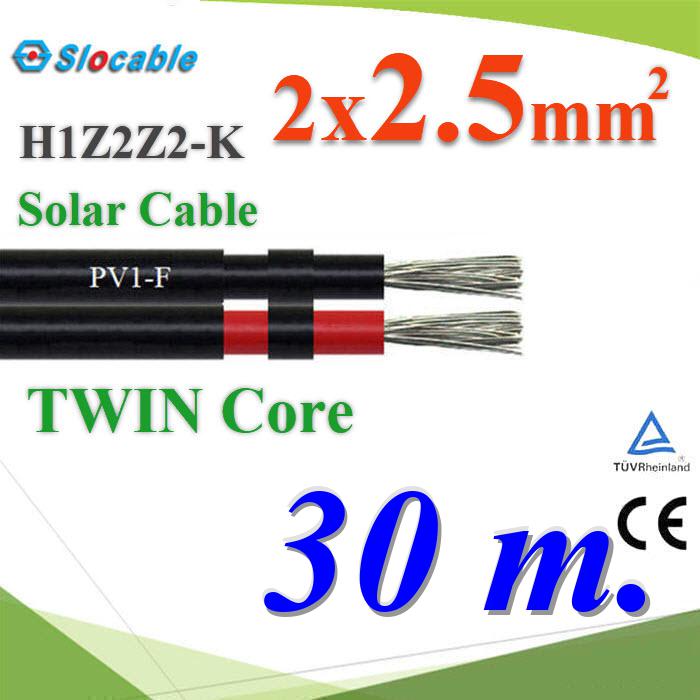

PHOTOVOLTAIC CABLE PV1-F Solar Cable DC 2x2.5 Sq.mm. TWIN 30m.
|
|
Code : PV1F-2x2P5-30m
PHOTOVOLTAIC CABLE PV1-F Solar Cable DC 2x2.5 Sq.mm. TWIN 30m.
PHOTOVOLTAIC CABLE (PV1-F) 2x2.5 Sq.mm. TWIN Solar Cable Solar cable is the interconnection cable used in photovoltaic power generation. A solar cable interconnects solar panels and other electrical components of a photovoltaic system. Solar cables are designed to be UV resistant and weather resistant. It can be used within a large temperature range and are generally laid outside.Core Conductor Tinned annealed copper (stranded core)Insulation Electron-beam cross-linked Polyolefin (XLPE)Nominal Volvatage Uo/U= 600/1000VAC, 1000/1800VDCTmperature Rating -45 upto 120CAmbient Temperature 25 years ( -40 upto 90)TUV Rheinland approval according to 2 PfG 1169/08.2007 1.5 Sq.mm. to 35 Sq.mm., UL. Certificate No. T 50372366 01
 There is a small quantity of the product.
www.Solar-Thailand.co.th/EN/Product/PV1F-2x2P5-30m/
PHOTOVOLTAIC CABLE PV1-F Solar Cable DC 2x2.5 Sq.mm. TWIN 30m.
Product group : [ 28. 2.5mm Solar Cable PV1-F ]
Paid by Paypal Payoneer QRcode
|
Code : PV1F-2x2P5-30m
PHOTOVOLTAIC CABLE PV1-F Solar Cable DC 2x2.5 Sq.mm. TWIN 30m.
PHOTOVOLTAIC CABLE (PV1-F) 2x2.5 Sq.mm. TWIN Solar Cable Solar cable is the interconnection cable used in photovoltaic power generation. A solar cable interconnects solar panels and other electrical components of a photovoltaic system. Solar cables are designed to be UV resistant and weather resistant. It can be used within a large temperature range and are generally laid outside.Core Conductor Tinned annealed copper (stranded core)Insulation Electron-beam cross-linked Polyolefin (XLPE)Nominal Volvatage Uo/U= 600/1000VAC, 1000/1800VDCTmperature Rating -45 upto 120CAmbient Temperature 25 years ( -40 upto 90)TUV Rheinland approval according to 2 PfG 1169/08.2007 1.5 Sq.mm. to 35 Sq.mm., UL. Certificate No. T 50372366 01
There is a small quantity of the product.
www.Solar-Thailand.co.th/EN/Product/PV1F-2x2P5-30m/
PHOTOVOLTAIC CABLE PV1-F Solar Cable DC 2x2.5 Sq.mm. TWIN 30m.
Product group : [ 2.5mm Solar Cable PV1-F ]
|
Line ID. @Solar-Thailand
 |
Please Add add friends. Line Skype WhatApp Wechat
Online Live Chat
|
|
PHOTOVOLTAIC CABLE PV1-F Solar Cable DC 2x2.5 Sq.mm. TWIN 30m.
Code : PV1F-2x2P5-30m
PHOTOVOLTAIC CABLE PV1-F Solar Cable DC 2x2.5 Sq.mm. TWIN 30m.
PHOTOVOLTAIC CABLE (PV1-F) 2x2.5 Sq.mm. TWIN Solar Cable Solar cable is the interconnection cable used in photovoltaic power generation. A solar cable interconnects solar panels and other electrical components of a photovoltaic system. Solar cables are designed to be UV resistant and weather resistant. It can be used within a large temperature range and are generally laid outside.Core Conductor Tinned annealed copper (stranded core)Insulation Electron-beam cross-linked Polyolefin (XLPE)Nominal Volvatage Uo/U= 600/1000VAC, 1000/1800VDCTmperature Rating -45 upto 120CAmbient Temperature 25 years ( -40 upto 90)TUV Rheinland approval according to 2 PfG 1169/08.2007 1.5 Sq.mm. to 35 Sq.mm., UL. Certificate No. T 50372366 01
|
|
Item specifics
|
| Photovoltaic Solar Cable PV1-F : |
2x2.5 Sq.mm. |
| Brand : |
ZW Cable |
| Current Carring Capacity : |
41A |
| Normal voltage : |
1000/1800V DC |
| Resistance : |
8.21 Ohm/Km |
| Construction : |
50/0.25 mm. |
| Max.conductor temperature : |
120 C |
| เส้นคู่ : |
สีด้านใน แดง-ดำ |
| ความยาว : |
30 เมตร |
Product group : 2.5mm Solar Cable PV1-F
|
