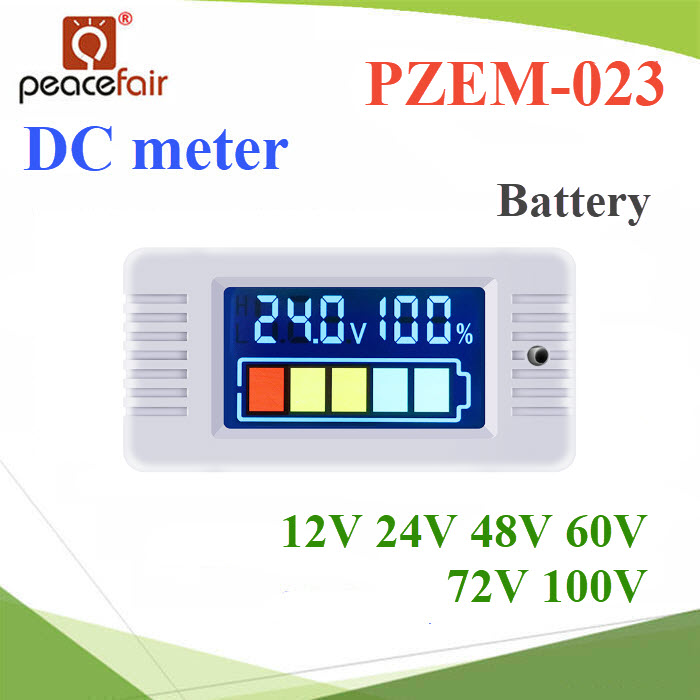

Peacefair PZEM-023 12V 24V 48V 60V 72V 100V Digital DC Voltage Meter Lead-acid Lithium Battery Tester
|
|
Code : PZEM-023-Battery
Peacefair PZEM-023 12V 24V 48V 60V 72V 100V Digital DC Voltage Meter Lead-acid Lithium Battery Tester
Digital DC Voltage Meter Lead-acid Lithium Battery Tester
Individual power supply range DC5-12V
Measurement range DC0-100V
Set full/cut off voltage
Before use it, please set the full and cut off voltage depend on the battery specification, the default specification is single 18650 battery (full voltage 4.2V, cut off voltage 2.75V)
Step1 Long press the key (2 seconds) to enter the full voltage setting interface, display such as H 4.20V，then release the key
Step2 The digit circularly flickers (automatically move without key operation for 2 seconds), in order high digit - middle digit - low digit - decimal point, short press to set the value and decimal point
Step3 After setting, long press the key (2 seconds) to enter the cut off voltage setting interface, display such as L 2.75v, then release the key, and the setting method same as above
Step4 After setting, long press the key (2 seconds) to save and exit if there is any problem with the setting data
 There is a small quantity of the product.
www.Solar-Thailand.co.th/EN/Product/PZEM-023-Battery/
Peacefair PZEM-023 12V 24V 48V 60V 72V 100V Digital DC Voltage Meter Lead-acid Lithium Battery Tester
Product group : [ 29. DC Voltage Amp Meter ]
Paid by Paypal Payoneer QRcode
|
Code : PZEM-023-Battery
Peacefair PZEM-023 12V 24V 48V 60V 72V 100V Digital DC Voltage Meter Lead-acid Lithium Battery Tester
Digital DC Voltage Meter Lead-acid Lithium Battery Tester
Individual power supply range DC5-12V
Measurement range DC0-100V
Set full/cut off voltage
Before use it, please set the full and cut off voltage depend on the battery specification, the default specification is single 18650 battery (full voltage 4.2V, cut off voltage 2.75V)
Step1 Long press the key (2 seconds) to enter the full voltage setting interface, display such as H 4.20V，then release the key
Step2 The digit circularly flickers (automatically move without key operation for 2 seconds), in order high digit - middle digit - low digit - decimal point, short press to set the value and decimal point
Step3 After setting, long press the key (2 seconds) to enter the cut off voltage setting interface, display such as L 2.75v, then release the key, and the setting method same as above
Step4 After setting, long press the key (2 seconds) to save and exit if there is any problem with the setting data
There is a small quantity of the product.
www.Solar-Thailand.co.th/EN/Product/PZEM-023-Battery/
Peacefair PZEM-023 12V 24V 48V 60V 72V 100V Digital DC Voltage Meter Lead-acid Lithium Battery Tester
Product group : [ DC Voltage Amp Meter ]
|
Line ID. @Solar-Thailand
 |
Please Add add friends. Line Skype WhatApp Wechat
Online Live Chat
|
|
Peacefair PZEM-023 12V 24V 48V 60V 72V 100V Digital DC Voltage Meter Lead-acid Lithium Battery Tester
Code : PZEM-023-Battery
Peacefair PZEM-023 12V 24V 48V 60V 72V 100V Digital DC Voltage Meter Lead-acid Lithium Battery Tester
Digital DC Voltage Meter Lead-acid Lithium Battery Tester
Individual power supply range DC5-12V
Measurement range DC0-100V
Set full/cut off voltage
Before use it, please set the full and cut off voltage depend on the battery specification, the default specification is single 18650 battery (full voltage 4.2V, cut off voltage 2.75V)
Step1 Long press the key (2 seconds) to enter the full voltage setting interface, display such as H 4.20V，then release the key
Step2 The digit circularly flickers (automatically move without key operation for 2 seconds), in order high digit - middle digit - low digit - decimal point, short press to set the value and decimal point
Step3 After setting, long press the key (2 seconds) to enter the cut off voltage setting interface, display such as L 2.75v, then release the key, and the setting method same as above
Step4 After setting, long press the key (2 seconds) to save and exit if there is any problem with the setting data
|
|
Item specifics
|
| Model : |
PZEM-023 |
| Brand Name : |
Peacefair |
| power supply range : |
DC5-12V |
| Measurement range : |
DC0-100V |
| Measurement range : |
DC8-100V |
Product group : DC Voltage Amp Meter
|
