The UNO R3 SMD Board Improved Version CH340 Chip
Line ID. @Solar-Thailand  |
Please Add add friends. Line Skype WhatApp Wechat Online Live Chat |
|

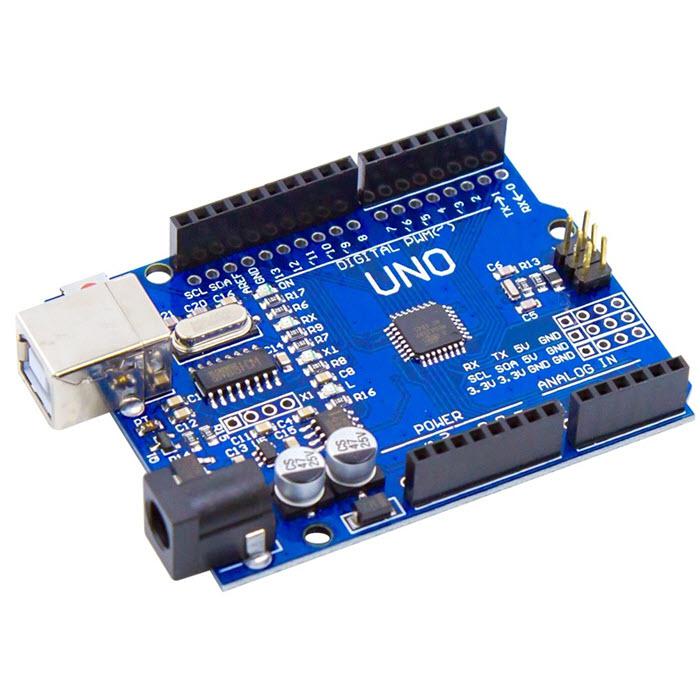

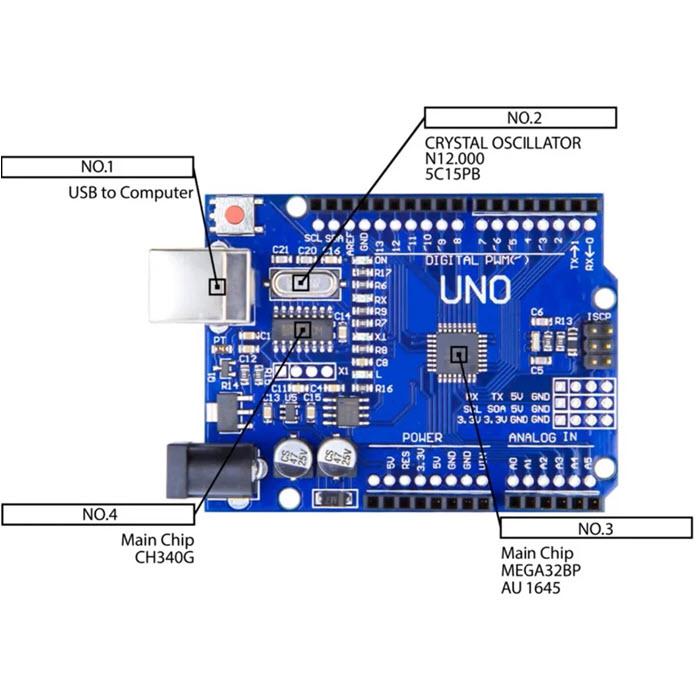

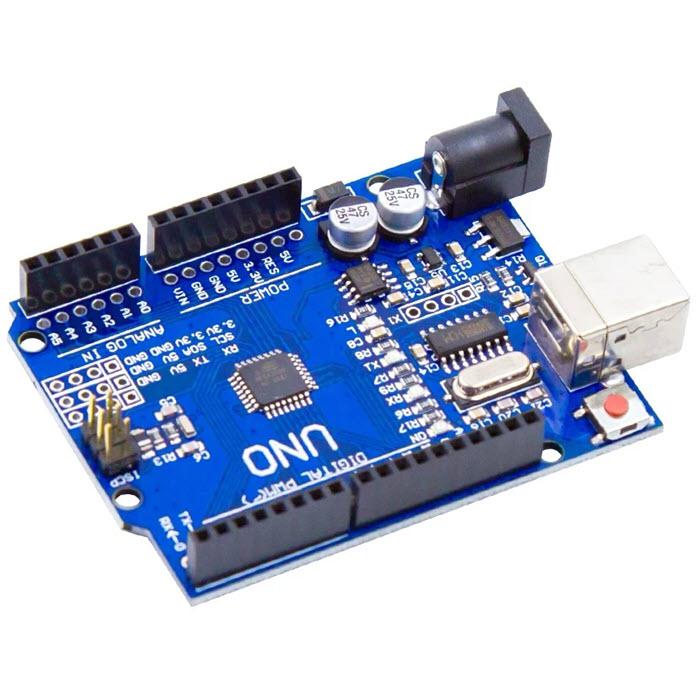

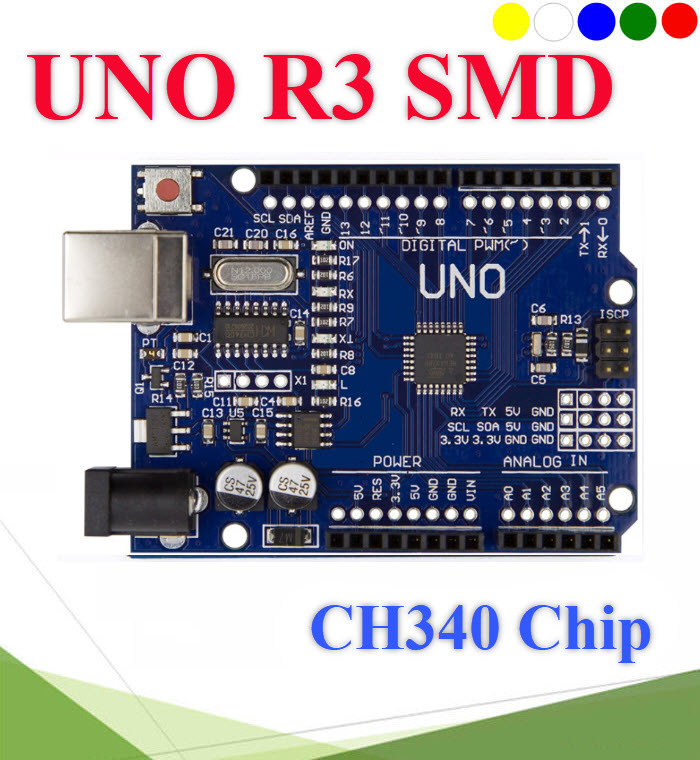

The UNO R3 SMD Board Improved Version CH340 Chip Code : UNO-R3-SMD-CH340 The UNO R3 SMD Board Improved Version CH340 Chip |
|
Item specifics | |
| Clock Speed : | 16 MHz. |
| EEPROM : | 1 KB |
| SRAM : | 2 KB |
| Flash Memory : | 32 KB |
| Analog Input Pins : | 6 DC Current per I/O Pin 40 mA DC Current for 3.3V Pin 50 mA |
| Digital I/O Pins : | 14 (of which 6 provide PWM output) |
| Input Voltage (limits) 6 : | 6-20V |
| Input Voltage (recommended) : | 7-12V |
| Operating Voltage : | 5V |
| Microcontroller : | Mega328P |
| model : | UNO R3 |
|
Download documents |
|
Related product list |
Product group : Board Arduino MCU
|
