PG-9-WHITEx20

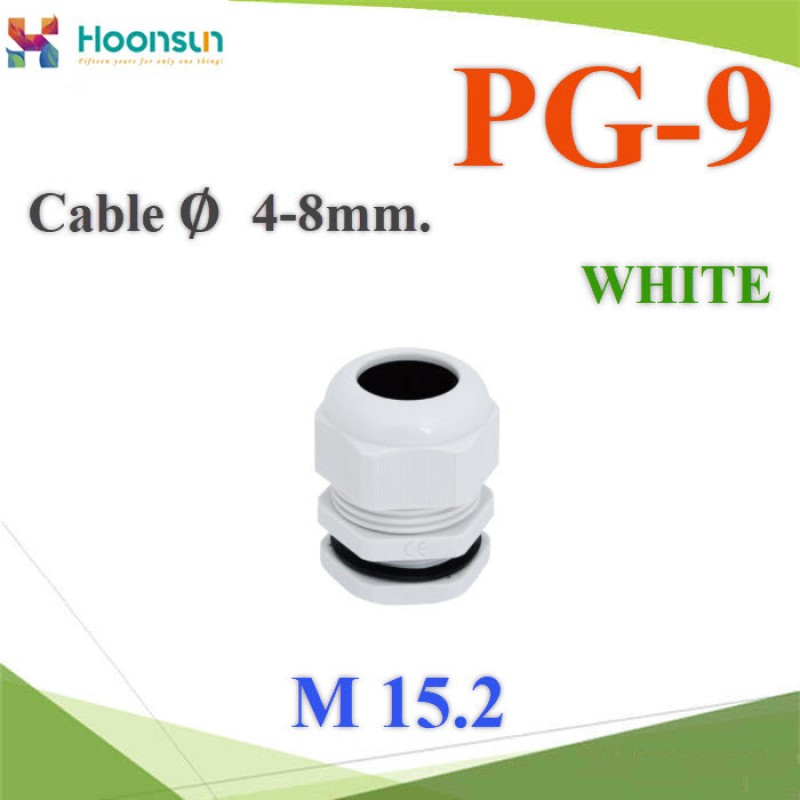

PG-9-WHITEx20 Cable gland PG-9 Plastic Waterproof With Locknut rubber White 20 pcs.

      PG Type Plastic Waterproof Cable Gland. A Cable Gland is a device which attach and secure the end of an electrical cable to the equipment. The purpose of a cable gland is to seal the cable and retain it in the electrical equipment that it is attached to. It should maintain the ingress protection rating of the enclosures, keeping out dust and moisture but it should also prevent the cable from being pulled out of the equipment and from being twisted whilst connected to equipment. Cable glands may be used on all types of electrical power, control, instrumentation, data and telecommunications cables.Adopting nylon PA66 certificated by UL. Nitrile butadiene rubber (NBR), Weatheringresistance rubber (EPDM) Working temperature -40Celsius to 100Celsius in static state, instantaneous heat resistance up to 120Celsius -20Celsius to 80Celsius in dynamic state, instantaneous heat resistance up to 100Celsius. IP68 (Rotate the part, and use O ring)

	Test Report CE EN62444     www.Solar-Thailand.co.th/pdf/SINO-CE-EN62444.pdf
	Certificate IP69 ISO60653     www.Solar-Thailand.co.th/pdf/SINO-IP69-Cable-Glands.pdf
	Certificate IP68 IEC60529     www.Solar-Thailand.co.th/pdf/SINO-IP68-Cable-Glands.pdf
	Certificate UV Exposure     www.Solar-Thailand.co.th/pdf/SINO-UV-Exposure-Certificate.pdf
	Certificate CE     www.Solar-Thailand.co.th/pdf/SINO-CE.pdf
