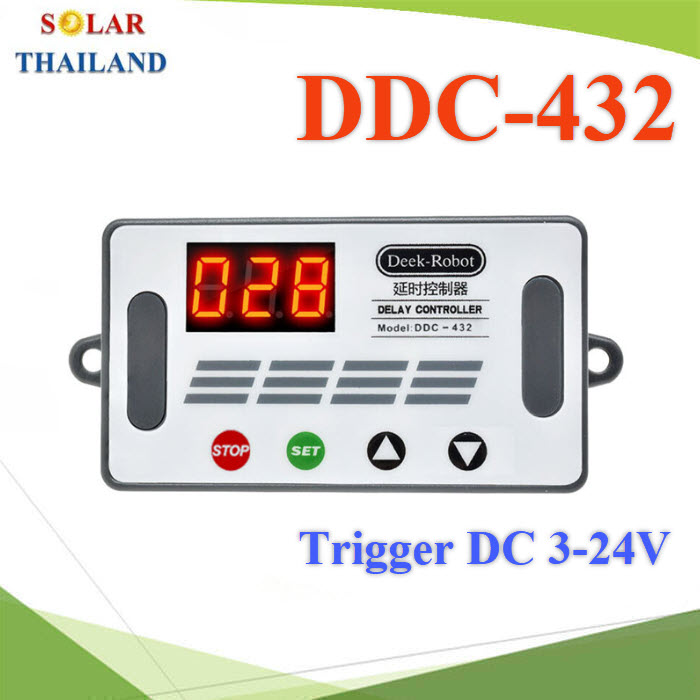

DDC-432 Dual MOS Time Delay Relay High Level Trigger LED Digital Display Sensor Trigger Switch

International shipping service.

DDC-432 Dual MOS Time Delay Relay High Level Trigger LED Digital Display Sensor Trigger Switch www.Solar-Thailand.co.th

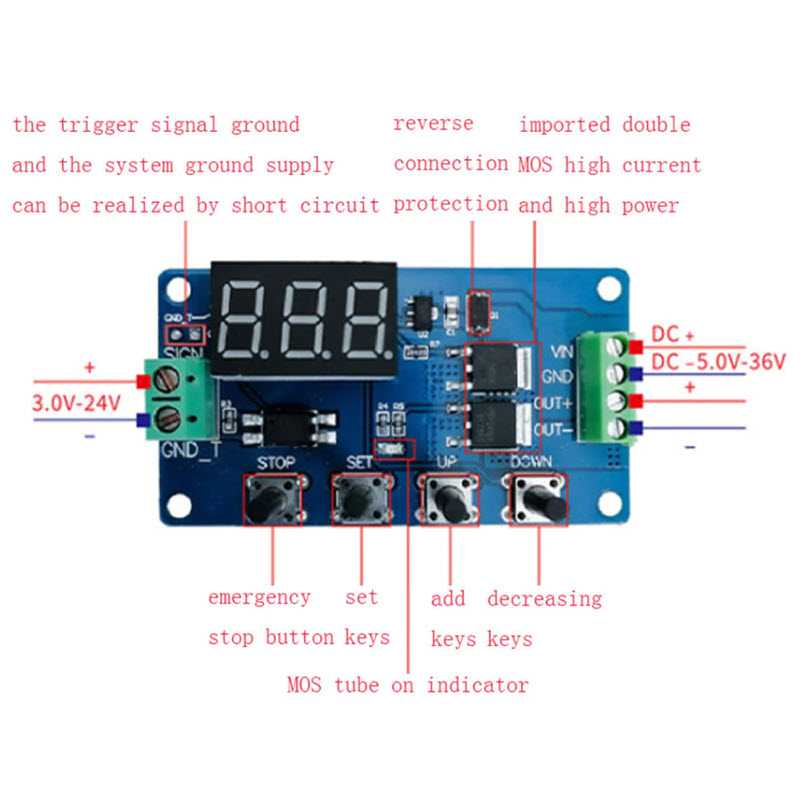

ขาย DDC-432 Dual MOS Time Delay Relay High Level Trigger LED Digital Display Sensor Trigger Switch DDC-432 Dual MOS Time Delay Relay High Level Trigger LED Digital Display Switch Circuit.Operating Mode:P1 mode: After the signal is triggered, the MOS transistor turns on the OP time and then turns off; in the OP time, the following operationP1.1: The signal is triggered again.P1.2: Signal triggers re-timed againP1.3: The signal triggers reset again, the MOS tube is disconnected, and the timing is stopped.P-2: Give the trigger signal, after the MOS transistor is disconnected from the CL time, the MOS transistor turns on the OP time. After the timing is completed, the MOS transistor is disconnected.P3.1: Give the trigger signal, after the MOS transistor turns on the OP time, the MOS tube turns off the CL time, then loops the above action, the signal is given again in the loop, the MOS tube is disconnected, the timing is stopped; the number of cycles (LOP) can be set.P3.2: No need to trigger signal after power-on, MOS tube turns on OP time, MOS tube disconnects CL time, loops the above action; loop number (LOP) can be setP-4: Signal hold function If there is a trigger signal, the timing is cleared, the MOS transistor remains on; when the signal disappears, the MOS transistor is disconnected after timing the OP; during the timing, there is a signal and the timing is cleared. Product for sale DDC-432 Dual MOS Time Delay Relay High Level Trigger LED Digital Display Switch Circuit.Operating Mode:P1 mode: After the signal is triggered, the MOS transistor turns on the OP time and then turns off; in the OP time, the following operationP1.1: The signal is triggered again.P1.2: Signal triggers re-timed againP1.3: The signal triggers reset again, the MOS tube is disconnected, and the timing is stopped.P-2: Give the trigger signal, after the MOS transistor is disconnected from the CL time, the MOS transistor turns on the OP time. After the timing is completed, the MOS transistor is disconnected.P3.1: Give the trigger signal, after the MOS transistor turns on the OP time, the MOS tube turns off the CL time, then loops the above action, the signal is given again in the loop, the MOS tube is disconnected, the timing is stopped; the number of cycles (LOP) can be set.P3.2: No need to trigger signal after power-on, MOS tube turns on OP time, MOS tube disconnects CL time, loops the above action; loop number (LOP) can be setP-4: Signal hold function If there is a trigger signal, the timing is cleared, the MOS transistor remains on; when the signal disappears, the MOS transistor is disconnected after timing the OP; during the timing, there is a signal and the timing is cleared.
