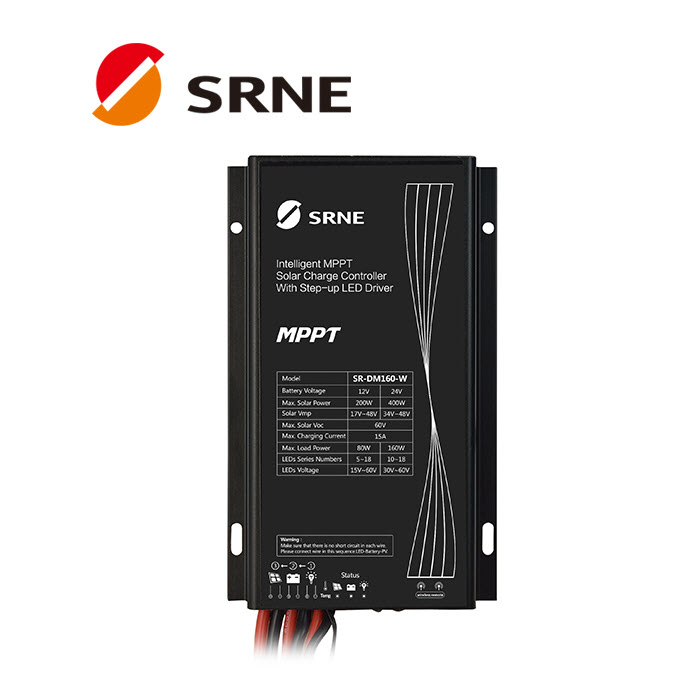

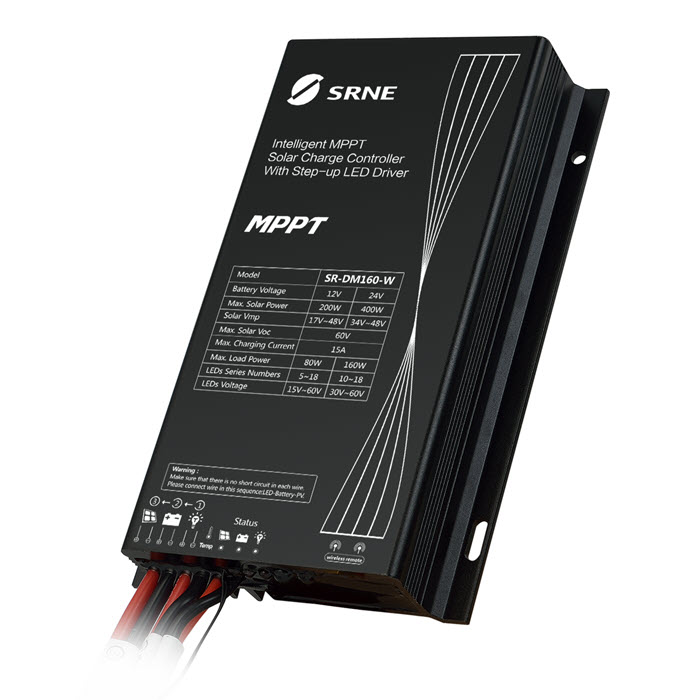

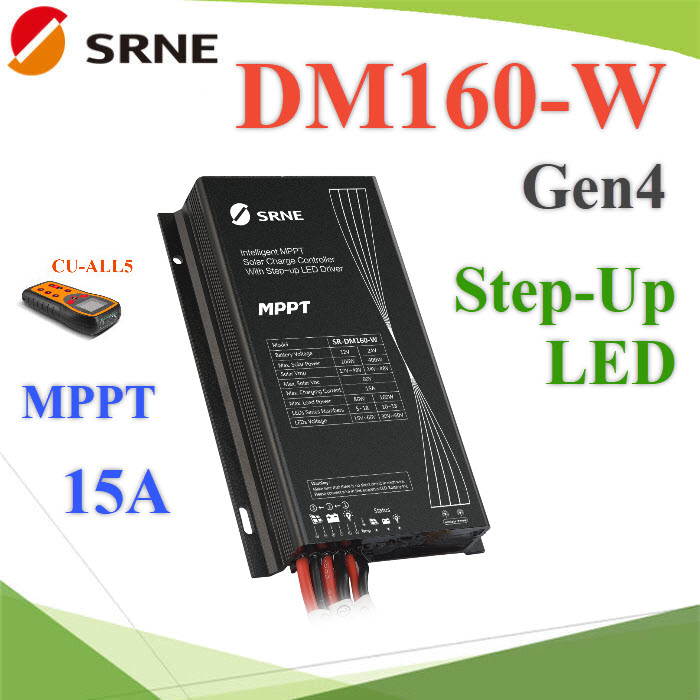

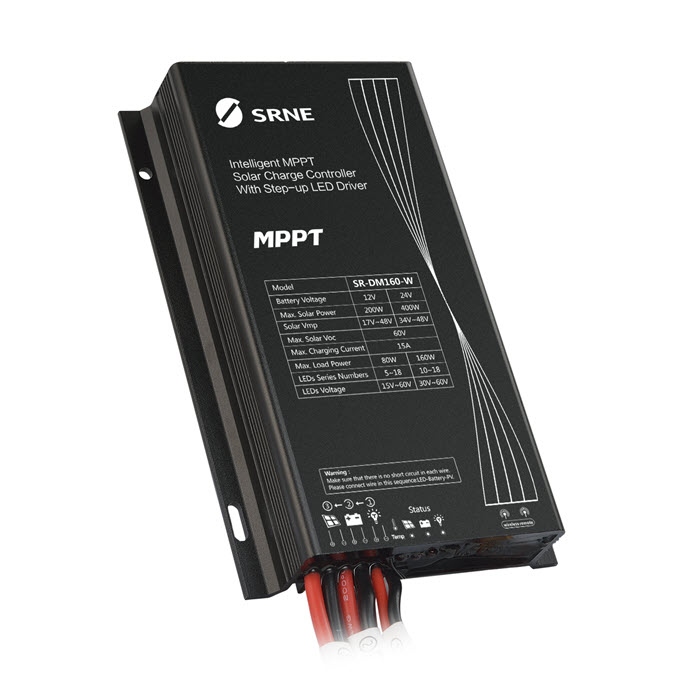

DM160-W Gen4 MPPT Controller Solar street light charge controller 15A Lead-acid Lithium battery


Code : SR-DM160-W

DM160-W Gen4 MPPT Controller Solar street light charge controller 15A Lead-acid Lithium battery

    MPPT LED Solar Street Light Controller DM160. Gen4 Intelligent MPPT Solar Charge Controller With Step-up LED Driver. Waterproof All-in-one Constant Current MPPT Charge Controller. The product is suitable for DM60/120/160/200(-W)
1. With MPPT technology, the controller has higher response speed and tracking efficiency, thus significantly improving the energy utilization efficiency of solar panels.
2. Lead-acid battery and lithium battery are available operating parameters can be set by remote control.
3. Temperature compensation function and multi-stage constant voltage charging for lead-acid battery.
4. Load power and time control.
5. Battery charge and discharge temperature protection and setting.
6. Intelligent power mode The load power can automatically adjust according to the battery level.
7. High-precision digital step-up voltage and constant current control algorithm ensure high efficiency and high constant current accuracy.
8. Infrared remote control allow for parameters setting and status checking.
9. Provide battery/PV reverse electrode protection, LED short-circuit, open-circuit, and limited power protection, etc.
10. With metal outer shell and IP67 waterproof rating, the product can function well in various tough situations.

  Ready to send immediately

www.Solar-Thailand.co.th/EN/Product/SR-DM160-W/

DM160-W Gen4 MPPT Controller Solar street light charge controller 15A Lead-acid Lithium battery

Product group : [ 82. Solar Charger Street Light ]


Paid by Paypal Payoneer QRcode

Code : SR-DM160-W

DM160-W Gen4 MPPT Controller Solar street light charge controller 15A Lead-acid Lithium battery

    MPPT LED Solar Street Light Controller DM160. Gen4 Intelligent MPPT Solar Charge Controller With Step-up LED Driver. Waterproof All-in-one Constant Current MPPT Charge Controller. The product is suitable for DM60/120/160/200(-W)
1. With MPPT technology, the controller has higher response speed and tracking efficiency, thus significantly improving the energy utilization efficiency of solar panels.
2. Lead-acid battery and lithium battery are available operating parameters can be set by remote control.
3. Temperature compensation function and multi-stage constant voltage charging for lead-acid battery.
4. Load power and time control.
5. Battery charge and discharge temperature protection and setting.
6. Intelligent power mode The load power can automatically adjust according to the battery level.
7. High-precision digital step-up voltage and constant current control algorithm ensure high efficiency and high constant current accuracy.
8. Infrared remote control allow for parameters setting and status checking.
9. Provide battery/PV reverse electrode protection, LED short-circuit, open-circuit, and limited power protection, etc.
10. With metal outer shell and IP67 waterproof rating, the product can function well in various tough situations.

  Ready to send immediately

www.Solar-Thailand.co.th/EN/Product/SR-DM160-W/

DM160-W Gen4 MPPT Controller Solar street light charge controller 15A Lead-acid Lithium battery

Product group : [ Solar Charger Street Light ]


Line ID. @541prymt

Please Add add friends. Line Skype WhatApp Wechat

Online Live Chat


DM160-W Gen4 MPPT Controller Solar street light charge controller 15A Lead-acid Lithium battery

Code : SR-DM160-W

DM160-W Gen4 MPPT Controller Solar street light charge controller 15A Lead-acid Lithium battery

MPPT LED Solar Street Light Controller DM160. Gen4 Intelligent MPPT Solar Charge Controller With Step-up LED Driver. Waterproof All-in-one Constant Current MPPT Charge Controller. The product is suitable for DM60/120/160/200(-W)
1. With MPPT technology, the controller has higher response speed and tracking efficiency, thus significantly improving the energy utilization efficiency of solar panels.
2. Lead-acid battery and lithium battery are available operating parameters can be set by remote control.
3. Temperature compensation function and multi-stage constant voltage charging for lead-acid battery.
4. Load power and time control.
5. Battery charge and discharge temperature protection and setting.
6. Intelligent power mode The load power can automatically adjust according to the battery level.
7. High-precision digital step-up voltage and constant current control algorithm ensure high efficiency and high constant current accuracy.
8. Infrared remote control allow for parameters setting and status checking.
9. Provide battery/PV reverse electrode protection, LED short-circuit, open-circuit, and limited power protection, etc.
10. With metal outer shell and IP67 waterproof rating, the product can function well in various tough situations.


Item specifics

Model   :   SR-DM160 Gen4
Battery voltage   :   12V / 24V
Controller type -W   :   2.4G wireless remote control
Maximum load power   :   80W/12V-20V 160W/24V-40V
Load voltage   :   15V - 60V
Maximum solar input voltage   :   60V
Protection degree   :   IP67
Working temperature   :   -35C to 65C
Remote control   :   CU-ALL5

Download documents

    Product Datasheet SR-DM160-W

    Datasheet

    Thailand Distributer

    Certificate CE

    Certificate RoHS

    Certificate ISO

    DM Manual
